产品特点及用途:
特点:

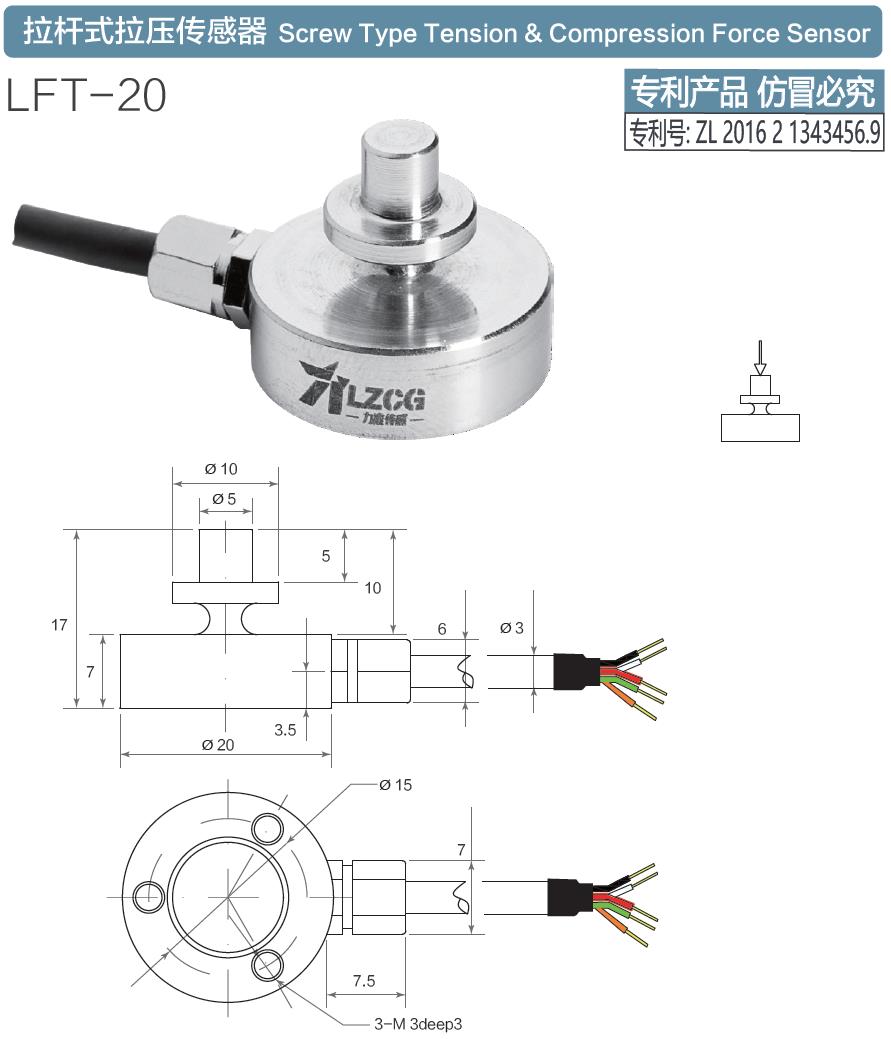

◆LFT-20采用高精度电阻应变式原理
◆可满足 9.8N~500N范围内的力测量。
◆不锈钢材料,密封焊接,防油、防水、耐腐蚀
◆磨合结构设计,压式承载,安装使用方便灵活。
◆安全防爆型产品,可用于恶劣环境及危险性场合。
◆铝合金/不锈钢材料
◆体积小巧,外型美观
◆动态响应频率高,高精度
用途:
主要应用于:拉力测试、插拔力测试仪,铆钉机,焊接机,冷热压贴膜机,键盘按钮手感度测试仪等拉压力测试仪器,自动化设备领域,测试领域。
Mainly applied in tension and compression testing instruments and automatic equipments fields,such as insertion force test instrument,riveting machine,welding machine,hot & cold lamination machine,feeling tester for keyboard switch, and etc.
其他信息:
如您有其他的需要,如量程、尺寸、安装位置、内置变送器等其他要求,请于我们联系,我们可为您量身定做。也欢迎您来我司莅临指导。
量程 Capacity |
0~5,10,20,30,50kg |
材质 Material |
不锈钢 Stainless Steel |
输出灵敏度 Rated Output |
1.0-1.5 mV/V |
输出电阻 Output Impedance |
1000±3Ω |
零点输出 Zero Balance |
±2%F.S. |
绝缘电阻 Insulation |
≥5000MΩ/100VDC |
非线性 Non-linearity |
0.5%F.S. |
使用电压 Recommended Excitation |
5-10V |
滞后 Hysteresis |
0.5%F.S. |
最大使用电压 Maximum Excitation |
15V |
重复性 Repeatability |
0.5%F.S. |
温度补偿范围 Compensated Temp Range |
-10~60℃ |
蠕变 (30分钟)Creep (30min) |
0.1%F.S. |
工作温度 范围 Operating Temp Range |
-20~80℃ |
温度灵敏度漂移Temp Effect on Output |
0.1%F.S./10℃ |
安全超载 Safe Load Limit |
120% |
零点温度漂移 Temp Effect on Zero |
0.1%F.S./10℃ |
极限超载 Ultimate Load Limit |
150% |
输入电阻 Input Impedance |
1000±5Ω |
电缆线尺寸 Cable Size |
φ3x 3m |
电缆线连接方式Wire Connection |
Ex + : 红 Red; Ex - : 黑 Black; Sig + : 绿 Green; Sig - : 白 White |
